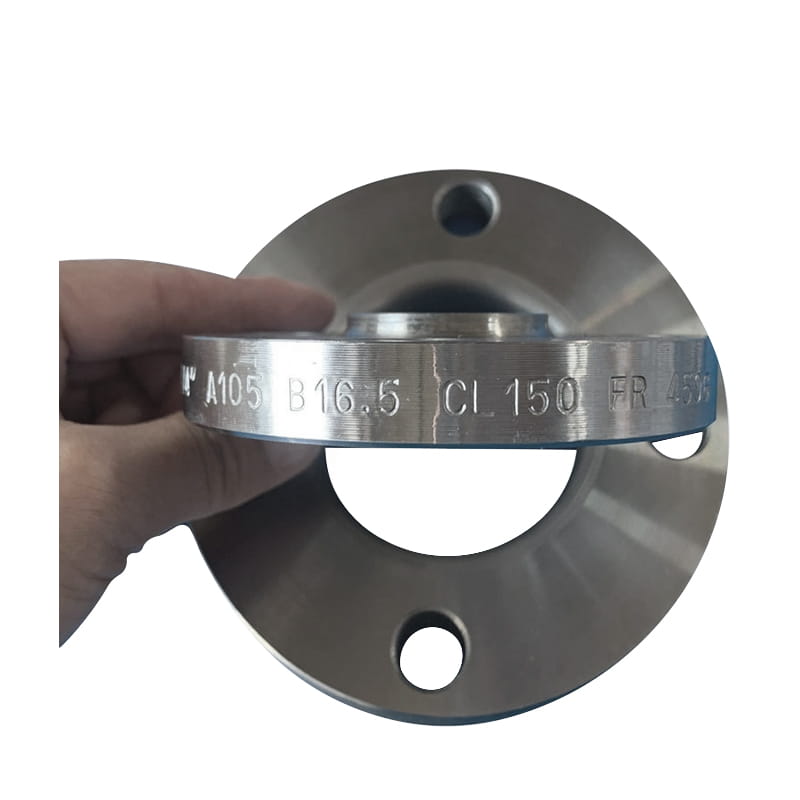

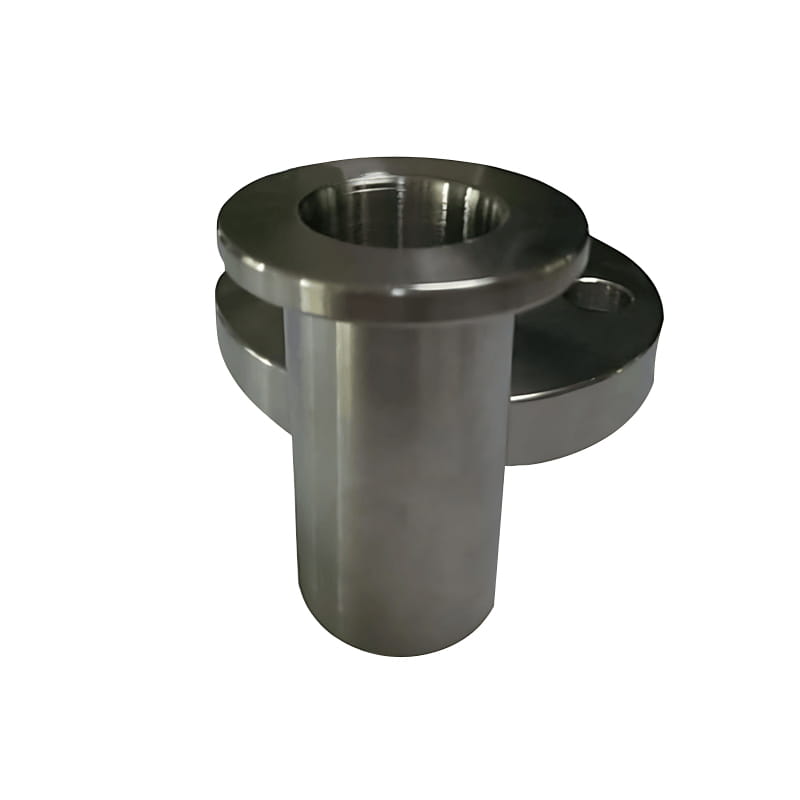

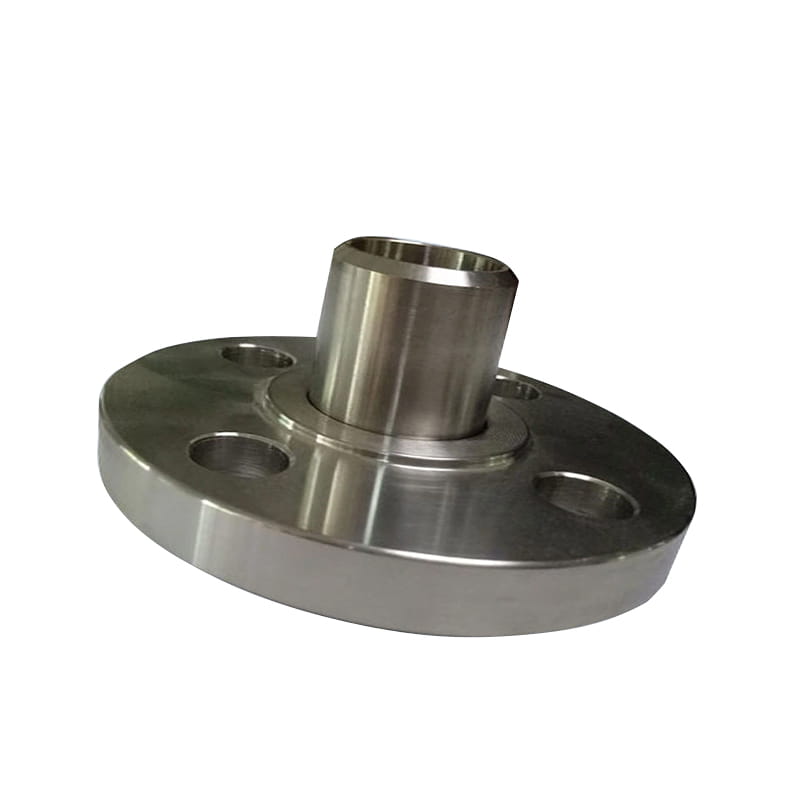

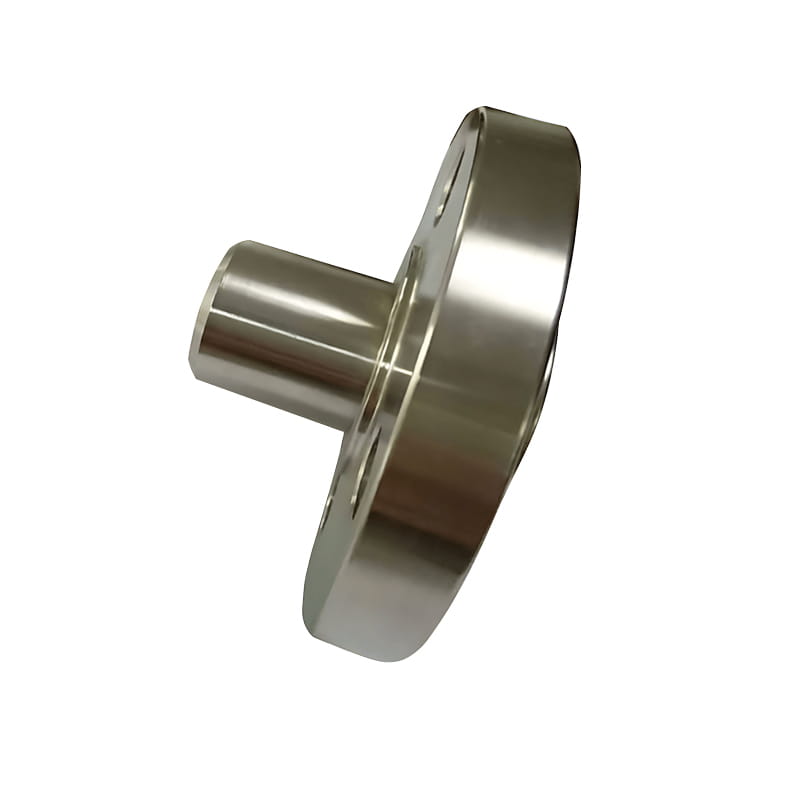

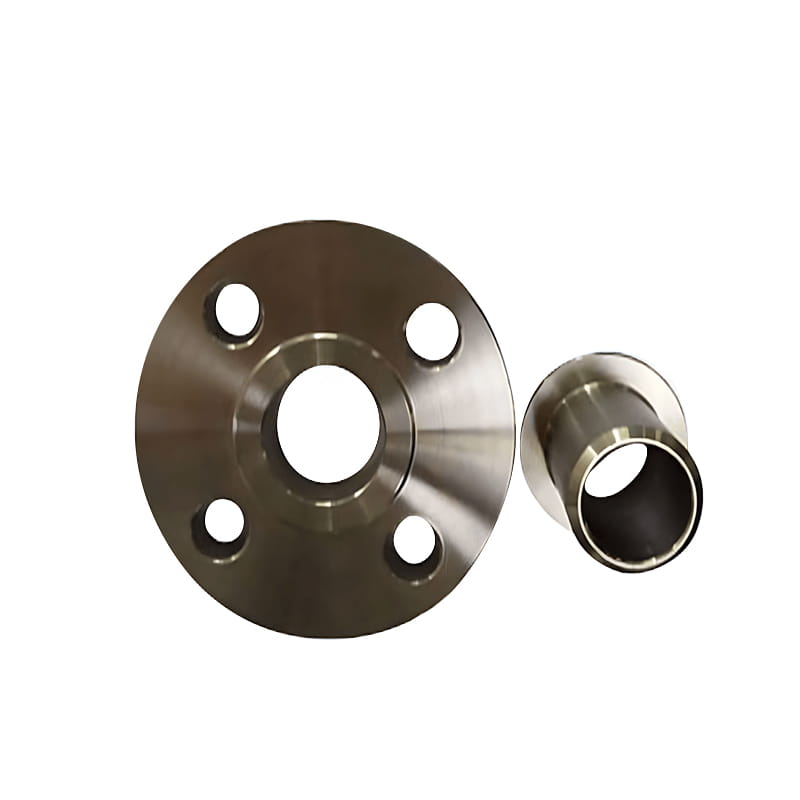

Introduzione

Standard	ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, Din, SABS1123, GOST-12820
Materiale	Acciaio inossidabile, acciaio al carbonio, acciaio in lega, nichel Cupro (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200/2), Monel (400 e K500), Inconel (600, 601, 625 e 825), incorporato (800, ATOY, ATOY (DUPLEX, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, ATOY, DUPSED, ACCIAI SS 904L, titanio (1 e 2) ecc.
Superficie	Olio anti-russo, pittura (nero, giallo), zincatura, rivestimento di potenza
Tipo	Forgiatura, elaborazione CNC
misurare	½ pollice - 24 pollici
Tempi di consegna	Entro 5-30 giorni dalla ricezione del prepagato
Imballaggio	Pollet in legno, pallet in legno, custodia in legno, ecc.
Applicazione	Energia elettrica, campo petrolifero, costruzione navale, offshore, sistemi idrici, gas naturale, progetti di tubi, ecc.

Classe 150 libbre

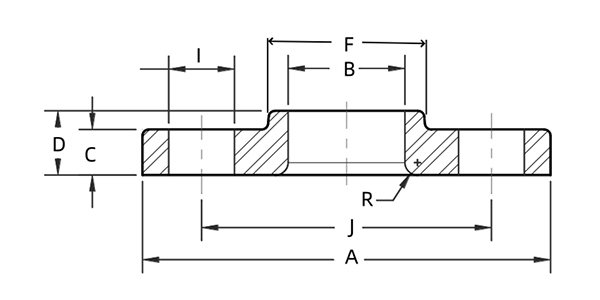

NomInale Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
In	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	88.90	22.90	11.20	15.70	3.00	30.20	4	15.70	60.45	0.38
¾	26.70	98.60	28.20	12.70	15.70	3.00	38.10	4	15.70	69.85	0.55
1	33.40	108.00	35.10	14.20	17.50	3.00	49.30	4	15.70	79.25	0.76
1 ¼	42.20	117.30	43.70	15.70	20.60	4.80	58.70	4	15.70	88.90	1.01
1 ½	48.30	127.00	50.00	17.50	22.40	6.40	65.00	4	15.70	98.60	1.30
2	60.30	152.40	62.50	19.10	25.40	7.90	77.70	4	19.10	120.70	2.03
2 ½	73.00	177.80	75.40	22.40	28.40	7.90	90.40	4	19.10	139.70	3.25
3	88.90	190.50	91.40	23.90	30.20	9.70	108.00	4	19.10	152.40	3.81
3 ½	101.60	215.90	104.10	23.90	31.75	9.70	122.20	8	19.10	177.80	4.76
4	114.30	228.60	116.80	23.90	33.30	11.20	134.90	8	19.10	190.50	5.25
5	141.30	254.00	114.50	23.90	36.60	11.20	163.60	8	22.40	215.90	6.02
6	168.30	279.40	171.50	25.40	39.60	12.70	192.00	8	22.40	241.30	7.40
8	219.10	342.90	222.30	28.40	44.50	12.70	246.10	8	22.40	298.50	12.10
10	273.00	406.40	277.40	30.20	49.30	12.70	304.80	12	25.40	362.00	16.40
12	323.80	482.60	328.20	31.75	55.60	12.70	365.30	12	25.40	431.80	26.10
14	355.60	533.40	360.20	35.10	79.25	12.70	400.10	12	28.40	476.30	34.50
16	406.40	596.90	411.20	36.60	87.40	12.70	457.20	16	28.40	539.80	44.60
18	457.20	635.00	462.30	39.60	96.80	12.70	505.00	16	31.75	577.90	48.70
20	508.00	698.50	514.40	42.90	103.10	12.70	558.80	20	31.75	635.00	61.60
24	609.60	812.80	616.00	47.80	111.30	12.70	663.40	20	35.10	749.30	86.60

Classe 300 libbre

NomInalee Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
In	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	95.20	22.90	14.20	22.30	3.00	38.10	4	15.70	66.55	0.62
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.70	4	19.00	82.50	1.10
1	33.40	123.90	35.10	17.50	26.90	3.00	53.80	4	19.00	88.90	1.33
1 ¼	42.20	133.30	43.70	19.00	26.90	4.80	63.50	4	19.00	98.50	1.65
1 ½	48.30	155.4	50.00	20.60	30.20	6.40	69.85	4	22.30	114.30	2.44
2	60.30	165.10	62.50	22.30	33.20	7.90	84.00	8	19.10	127.00	2.83
2 ½	73.00	190.50	75.40	25.40	38.10	7.90	100.00	8	22.30	149.30	4.25
3	88.90	209.50	91.40	28.40	42.90	9.70	117.30	8	22.30	168.10	5.78
3 ½	101.60	228.60	104.10	30.20	44.40	9.70	133.30	8	22.30	184.10	7.27
4	114.30	254.00	116.80	31.70	47.70	11.20	146.00	8	22.30	200.10	9.55
5	141.30	279.40	114.50	35.00	50.80	11.20	177.80	8	22.30	234.90	12.20
6	168.30	317.50	171.50	36.50	52.30	12.70	206.20	12	22.30	267.70	15.50
8	219.10	381.00	222.30	41.10	61.90	12.70	260.30	12	25.40	330.20	24.10
10	273.00	444.50	277.40	47.70	95.20	12.70	320.50	16	28.40	387.30	34.40
12	323.80	520.70	328.20	50.80	101.60	12.70	374.60	16	31.70	450.80	50.40
14	355.60	584.20	360.20	53.80	111.20	12.70	425.40	20	31.70	514.3	70.90
16	406.40	647.70	411.20	57.15	120.60	12.70	482.60	20	35.00	571.50	89.50
18	457.20	711.20	462.30	60.45	130.00	12.70	533.40	24	35.00	628.60	111.00
20	508.00	774.70	514.40	63.50	139.70	12.70	587.20	24	35.00	685.80	137.00
24	609.60	914.40	616.00	69.80	152.40	12.70	701.50	24	41.10	812.80	204.00

Classe 400 libbre

NomInalee Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
In	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.40	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	254.00	116.80	35.10	50.80	11.20	146.10	8	25.40	200.20	10.90
5	141.30	279.40	114.50	38.10	53.80	11.20	177.80	8	25.40	235.00	13.70
6	168.30	317.50	171.50	41.10	57.15	12.70	206.20	12	25.40	269.70	18.00
8	219.10	381.00	222.30	47.80	68.30	12.70	260.40	12	28.40	330.20	28.30
10	273.00	445.00	277.40	53.80	101.60	12.70	320.50	16	31.75	387.40	38.80
12	323.80	520.70	328.20	57.15	108.00	12.70	374.70	16	35.10	450.90	56.60
14	355.60	584.20	360.2	60.45	117.30	12.70	425.50	20	35.10	514.40	78.60
16	406.40	647.70	411.20	63.50	127.00	12.70	482.60	20	38.10	571.50	100.00
18	457.20	711.20	462.30	66.55	136.70	12.70	533.40	24	38.10	628.70	122.00
20	508.00	774.70	514.40	69.85	146.10	12.70	587.20	24	41.10	685.80	145.00
24	609.60	914.40	616.00	76.20	158.80	12.70	701.50	24	47.80	812.80	217.00

Classe 600 libbre

NomInalee Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	95.30	22.90	14.20	22.40	3.00	38.10	4	15.70	66.55	0.72
¾	26.70	117.30	28.20	15.70	25.40	3.00	47.80	4	19.10	82.60	1.25
1	33.40	124.00	35.10	17.50	26.90	3.00	53.80	4	19.10	88.90	1.50
1 ¼	42.20	133.40	43.70	20.60	28.40	4.80	63.50	4	19.10	98.60	2.00
1 ½	48.30	155.4	50.00	22.40	31.75	6.40	69.85	4	22.40	114.30	2.92
2	60.30	165.10	62.50	25.40	36.60	7.90	84.10	8	19.10	127.00	3.55
2 ½	73.00	190.50	75.40	28.40	41.10	7.90	100.10	8	22.40	149.40	5.23
3	88.90	209.60	91.40	31.75	46.00	9.70	117.30	8	22.40	168.10	6.95
3 ½	101.60	228.60	104.10	35.10	49.30	9.70	133.40	8	25.40	184.20	8.78
4	114.30	273.10	116.80	38.10	53.80	11.20	152.40	8	25.40	215.9	14.40
5	141.30	330.20	114.50	44.50	60.45	11.20	189.00	8	28.40	266.70	24.30
6	168.30	355.60	171.50	47.80	66.55	12.70	222.30	12	28.40	292.10	28.50
8	219.10	419.10	222.30	55.60	76.20	12.70	273.10	12	31.75	349.30	43.10
10	273.00	508.00	277.40	63.50	111.30	12.70	342.90	16	35.10	431.80	70.50
12	323.80	558.80	328.20	66.55	117.30	12.70	400.10	20	35.10	489.00	86.10
14	355.60	603.30	360.20	69.85	127.00	12.70	431.80	20	38.10	527.10	100.00
16	406.40	685.80	411.20	76.20	139.70	12.70	495.30	20	41.10	603.30	145.00
18	457.20	743.00	462.30	82.60	152.40	12.70	546.10	20	44.50	654.10	177.00
20	508.00	812.80	514.40	88.90	165.10	12.70	609.60	24	44.50	723.90	225.00
24	609.60	939.80	616.00	101.60	184.20	12.70	717.60	24	50.80	838.20	318.00

Classe 900 libbre

Nominal Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	241.30	91.40	38.10	53.80	9.70	127.00	8	25.40	190.50	11.30
4	114.30	292.10	116.80	44.40	69.85	11.20	158.70	8	31.70	234.90	19.20
5	141.30	349.20	114.50	50.80	79.25	11.20	190.50	8	35.00	279.40	31.20
6	168.30	381.00	171.50	55.60	85.80	12.70	234.90	12	31.70	317.50	40.50
8	219.10	469.90	222.30	63.50	114.30	12.70	298.40	12	38.10	393.70	71.50
10	273.00	546.10	277.40	69.85	127.00	12.70	368.30	16	38.10	469.90	104.00
12	323.80	609.60	328.20	79.25	142.70	12.70	419.10	20	38.10	533.40	139.00
14	355.60	641.30	360.20	85.80	155.40	12.70	450.80	20	41.10	558.80	161.00
16	406.40	704.80	411.20	88.90	165.10	12.70	508.00	20	44.40	615.90	194.00
18	457.20	787.40	462.30	101.60	190.50	12.70	565.10	20	50.80	685.80	267.00
20	508.00	857.20	514.40	107.90	209.50	12.70	622.30	20	53.80	749.30	334.00
24	609.60	1041.40	616.00	139.70	266.70	12.70	749.30	20	66.55	901.70	618.00

Classe 1500 libbre

Nominal Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	120.60	22.90	22.30	31.70	3.00	38.10	4	22.30	82.50	1.71
¾	26.70	130.00	28.20	25.40	35.00	3.00	44.40	4	22.30	88.90	2.30
1	33.40	149.30	35.10	28.40	41.10	3.00	52.30	4	25.40	101.60	3.40
1 ¼	42.20	158.70	43.70	28.40	41.10	4.80	63.50	4	25.40	111.20	3.85
1 ½	48.30	177.80	50.00	31.70	44.40	6.40	69.85	4	28.40	123.90	5.28
2	60.30	215.90	62.50	38.10	57.15	7.90	104.60	8	25.40	165.10	9.78
2 ½	73.00	244.30	75.40	41.10	63.50	7.90	123.90	8	28.40	190.50	13.60
3	88.90	266.70	91.40	47.70	73.15	9.70	133.30	8	31.70	203.2	17.80
4	114.30	311.10	116.80	53.80	90.40	11.20	162.00	8	35.00	241.30	27.50
5	141.30	374.60	114.50	73.15	104.60	11.20	196.80	8	41.10	292.10	51.50
6	168.30	399.70	171.50	82.50	119.10	12.70	228.60	12	38.10	317.50	62.00
8	219.10	482.6	222.30	91.90	142.70	12.70	292.10	12	44.40	393.70	105.00
10	273.00	584.20	277.40	107.90	177.80	12.70	368.30	12	50.80	482.60	179.00
12	323.80	673.10	328.20	123.90	218.90	12.70	450.80	16	53.80	571.50	269.00
14	355.60	749.30	360.20	133.30	241.30	12.70	495.30	16	60.45	635.00	365.00
16	406.40	825.50	411.20	146.00	260.30	12.70	552.40	16	66.55	704.80	459.00
18	457.20	914.40	462.30	162.00	276.30	12.70	596.90	16	73.15	774.70	598.00
20	508.00	984.20	514.40	177.80	292.10	12.70	641.30	16	79.25	831.80	712.00
24	609.60	1168.40	616.00	203.20	330.20	12.70	726.00	16	91.90	990.60	1090.00

Classe 2500 libbre

Nominal Dimensione del tubo	Al di fuori Diametro	Complessivamente Diametro	Dentro Diametro	Flangia Spessore	Complessivamente Lunghezza	Giro Raggio	Centro Diametro	Numero di buchi	Foro bullone Diametro	Diametro di cerchio di buchi	Peso
in	mm	A (mm)	B (mm)	C (mm)	D (mm)	R (mm)	F (mm)	Hmm)	I (mm)	J (mm)	kg/ pezzo
½	21.30	133.40	22.90	30.20	39.60	3.00	42.90	4	22.40	88.90	2.92
¾	26.70	139.70	28.20	31.75	42.90	3.00	50.80	4	22.40	95.30	3.40
1	33.40	158.80	35.10	35.10	47.80	3.00	57.15	4	25.40	108.00	4.77
1 ¼	42.20	184.20	43.70	38.10	52.30	4.80	73.15	4	28.40	130.00	7.08
1 ½	48.30	203.20	50.00	44.50	60.45	6.40	79.25	4	31.75	146.10	9.93
2	60.30	235.00	62.50	50.80	69.85	7.90	95.30	8	28.40	171.50	14.70
2 ½	73.00	266.70	75.40	57.15	79.25	7.90	114.30	8	31.75	196.90	21.30
3	88.90	304.80	91.40	66.55	91.90	9.70	133.40	8	35.10	228.60	32.30
4	114.30	355.60	116.80	76.20	108.00	11.20	165.10	8	41.10	273.10	52.50
5	141.30	419.10	114.50	91.90	130.00	11.20	203.20	8	47.80	323.90	82.60
6	168.30	482.60	171.50	108.00	152.40	12.70	235.00	8	53.80	368.30	127.00
8	219.10	552.50	222.30	127.00	177.80	12.70	304.80	12	53.80	438.20	186.00
10	273.00	367.10	277.40	165.10	228.60	12.70	374.70	12	66.55	539.80	352.00
12	323.80	762.00	328.20	184.20	254.00	12.70	441.50	12	73.15	619.30	501.00
